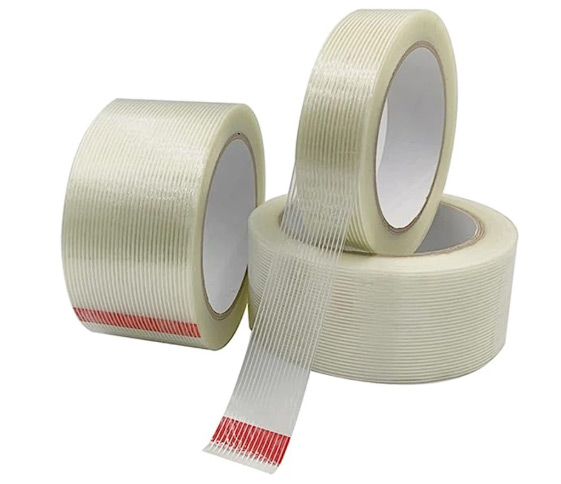

Fiberglass tape
CGAPL Type 8411 is a glass fabric-based insulation material with a single-faced adhesive, offering excellent thermal and electrical performance. It features high tensile strength, strong adhesion, and operates up to 130°C, making it ideal for reliable industrial insulation applications.
| CGAPL Type: 8411 | |||
|---|---|---|---|
| Properties | Unit | Specified Values | Observed Values |
| Width | mm | 12.5 ± 0.5 | 12.55 |
| Length | m | 20 + 0.5-0.0 | 20 |
| Base Material | -- | Glass Fabric | Glass Fabric |
| Base Thickness | mm | 0.120 (min) | 0.121 |
| Adhesive Coating | -- | Single Faced | Single Faced |
| Total Thickness | mm | 0.165 (min) | 0.170 |
| Adhesion to Steel | N/cm | 2.0 (min) | 2.6 |
| Tensile Strength | N/cm | 150 (min) | 185 |
| Ultimate Elongation | % | 10 (max) | 09 |
| Breakdown Voltage | Volts | 2000 (min) | 2500 |
| Operating Temperature Range | °C | 130 | 130 |
| Insulation Class | °C | B | B |
| Colour | Visual | White | White |
